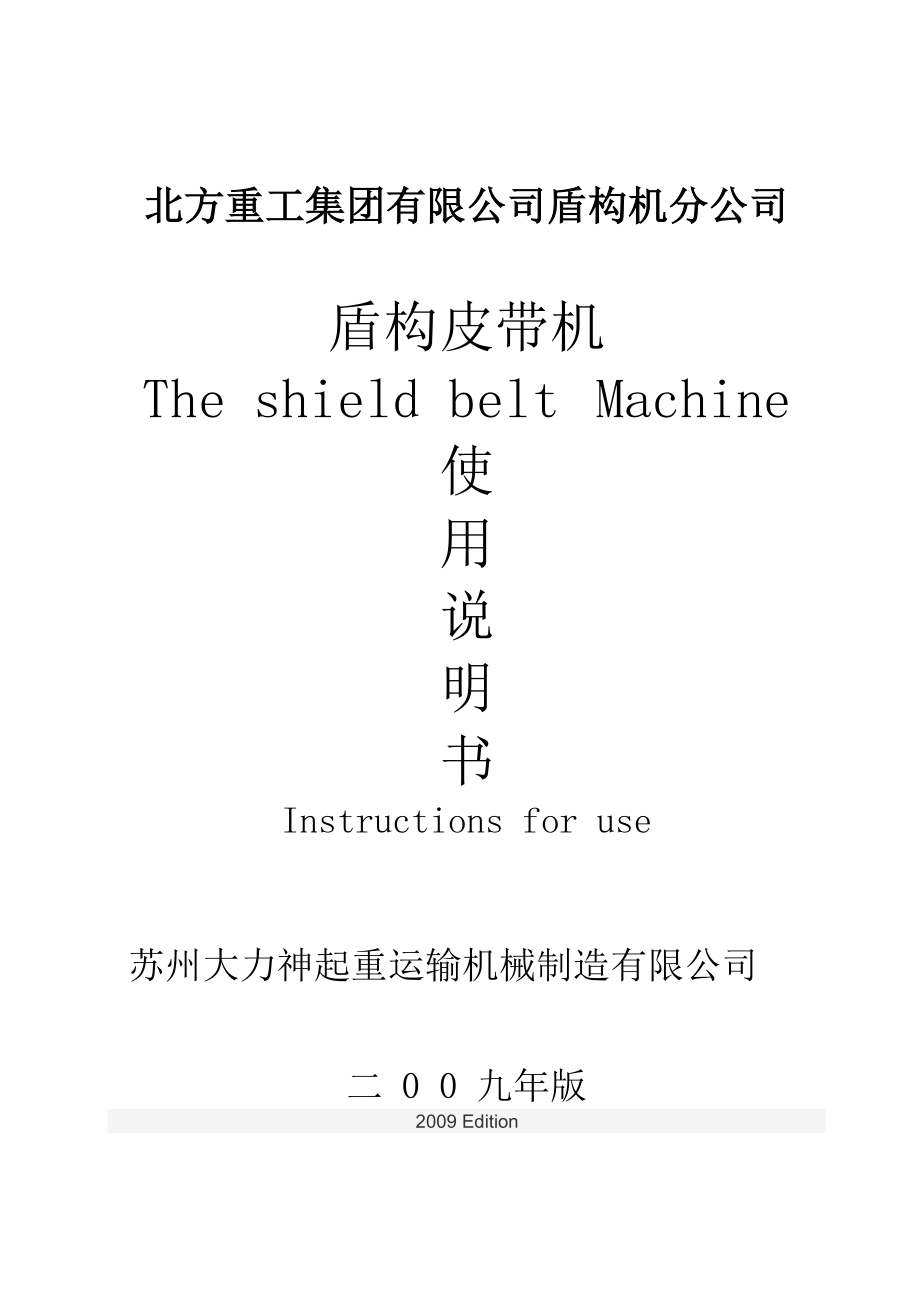

北方重工集团有限公司盾构机分公司盾构皮带机The shield belt Machine使用说明书Instructions for use苏州大力神起重运输机械制造有限公司二 0 0 九年版2009 Edition目 录（CONTENTS）1、用途(purpose)．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．1 2、技术特性和主要参数．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．1(Technical characteristics and main parameters)3、结构概述(Structure Overview)．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．1- 24、整机安装、试运转、调整和运行性能．．．．．．．．．．．．．．．．．．．．．．．．．．．．．2-6(Machine installation, commissioning, adjustment and Running performance)5、安装操作和维护保养．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．6-7(Installation and Maintenance)6、润滑表（Lubrication table）．．．．．．．．．..．．．．．．．．．．．．．．．．．．．．．．．．7１、用途（purpose）盾构输送机根据隧道盾构掘进机工况条件而设计，主要用于盾构掘进机物料的输送。
在环境温度-20℃到+40℃的范围内使用，输送物料温度在50℃以下The shield of structure Strap machine design according to the tunnel shield Gou, Shield tunneling machine is mainly used for the delivery of materials. At ambient temperature -20 ℃ to +40 ℃ range use, Conveying material temperature below 50 ℃.２、技术特征和主要参数:Technology characteristic and main parameters1.盾构输送机可输送物料的容量可在2.5t/m3 The shield material conveyor can transport capacity in 2.5t/ m3.2.本系列按带宽分为：500、650、750、800mm等四种规格This series by bandwidth is divided into: 500, 650, 750, 800 mm, four types of3.运行速度，按带速分为；0.8、1.0、1.25、1.6、2.0、2.5m等也可依据实际情况选用合理的速度。
Operating speed, belt speed into; 0.8, 1, 1.25, 1.6, 2 g, also may be based upon actual use reasonable speed.3、结构概述（structure explanation）： 3.1整机布置（Machine layout）：盾构皮带机整机布置由设计者根据装载盾构皮带机的小火车及现场工况决定，大体可分为；头部节（含拉紧装置、头架、驱动机构、下料漏、及H型+P型清扫器等）、水平段、斜段（含改向滚筒及空段清扫器等）水平段每一节的长度尺寸依据小火车的长度及小火车上的支点来确定，节与节之间通过铰链连接，斜段，斜段与水平段采用钢性连接，高强度螺栓加钢板连接The shield belt loading machine layout by the designer according to The shield belt conveyor train and decided to field conditions, can be roughly divided into; the head section (including the tensioning device, the first frame, drive mechanism, cutting leakage, and H-+ P-type Belt cleaner, etc.), horizontal section, oblique section (including empty segments bend pulley and Belt cleaner, etc.) the length of each section of the horizontal segment of the small size based on the length of the train and the train on the fulcrum to determine section and through the hinge joint between the connecting section, oblique section oblique section and horizontal section using steel connections, bolt and plate connections.3.2输送带（Conveyor）：是曳引和承载物料的主要部件。
胶带规格为一般为4P（4.5+1.5），用户也可依据输送量等实际情况，计算输送带的张紧力来选用，胶带接头为硫化胶接Traction and bearing materials is the main components. Tape specifications generally 4P (4.5 +1.5), the user throughput can also be based on the actual situation, the calculation to use belt tension, tape joints sulfide bonding.3.3驱动装置（ Drive device）：盾构皮带机一般采用TDY型，包胶电动滚筒，与电机减速机加链轮，链条传动两种传动方式The shield belt type commonly used TDY, including rubber roller, sprocket and motor plus reducer, chain drive two kinds of transmission mode.3.4托辊（Roller）：托辊是支承输送带和其上的物料并使之稳定运行，水平段和斜段采用槽型托辊组,头，尾，及斜段与水平度过渡采用15度，20度过渡托辊组，槽型上托辊间距一般取800-1000平行下托辊间距一般取2000米。
Roller is supporting conveyor belt and its material and made stable operation, horizontal section and inclined section of the slot roller group, head, tail, and inclined section and levelness transition with 15 degrees, 20 degrees transition roller group, slot on the type roller spacing general take 800-1000 under the parallel roller spacing general take 2000 meters.3.5清扫器装置(Belt cleaner device)：盾构输送机设三道清扫器，头部设H型+P型清扫器，尾部设有一道空段清扫器，清扫采用，聚氨酯清扫头，或硬质合金清扫头，一般采用聚氯酯聚氯脂清扫头，耐磨不损坏输送带,清扫干净Shield conveyor set three way sweeper, head set H + P type sweeper, tail has a empty section sweeper, cleaning the use, polyurethane cleaning the head, or hard alloy cleaning the head, generally USES chlorine ester gather together chlorine fat cleaning the head, wear-resisting don't damage the conveyor belt, cleaning the clean.3.5.1、H型，P型清扫器：用来清扫粘在输送带承载面上的粘着物，防止带上的粘着物污染环境和引起输送带跑偏。
我公司在设备出厂前已经安装好，现场只需调整H, P type sweeper: used for cleaning the sticky on the conveyor belt in carrying the adhesion of content, prevent take the adhesion of environmental pollution caused by things and conveyor belt running deviation. My company in equipment before they leave the factory has been installed, the scene just adjust.3.5.2空段清扫器，用来清扫粘在输送带非承载面上的粘着物，防止物料卡在尾部滚筒，我公司在设备出厂前已经安装好Empty section sweeper, used to cleaning the stick in the bearing surface conveyor belt the adhesion of content, prevent material card at the rear roller, my company in equipment before they leave the factory has been installed.3.6、其它及保护(Other and to protect)：3.6.1、头部设有下料漏斗。
The head is the material funnel set.3.6.2、盾构皮带机水平段胶接处均对称设有一组交叉上立辊组，一组挡板；一组挡边下立辊，斜段也设有上下挡边立辊，有效防止胶带跑偏Belt The shield bonding at both horizontal section has a cross on a symmetrical vertical roll groups, one baffle; a vertical roll under the wall, oblique section also has a vertical roll up and down the wall, effectively prevent the belt run.3.6.3、全长设置一对拉绳开关Total length set up a pair rope switch.3.6.4、全长设置一个速度检测器Total length set up a speed check device 3.6.5、本皮带机设一个报警器The belt set an alarm.4、整机安装、试运转、调整和运行性能：安装前后根据验收规则进行验收，并熟悉安装技术要求和输送机图纸要求我公司在设备出厂前已将各节上的零部件装配好，现场只需依据图纸上每节长度及节的编号。
依次将各节铰接组装，并将皮带的各支脚固定在小火车各支点上斜段与水平段采用销轴连接，斜段部分用螺栓与联接板固定即可尾端固定在相应的支点Machine installation, Test run, adjustment and Running performance:Before and after installation and acceptance rules based on acceptance, and familiar with the installation drawings, technical requirements and asked me to conveyor equipment factory in the sections before the assembled components on the scene just the length of each section on the basis of drawings and section number. Each section in turn will hinge assembly, and the belt of the feet fixed on the little train on the fulcrum. Oblique section and horizontal section using the pin connection, oblique section of part of the plate with bolts and can be connected. End in the corresponding protection fixed.4.1安装注意事项：全部滚筒，托辊，立辊，驱动装置安装后均应转动灵活，输送带接头时，应将电动滚筒或传动滚筒松到放在最后方位置，并尽量拉紧输送带。
Installation Notes:All roller, roller, vertical roll, The drive rotation after installation should be flexible,Belt connector, should a roller or loose drive pulley on the end side to the position, and try to tighten the belt4.2试运转前：新安装的输送机在正式投入使用前，应进行2小时空载及8小时负载试运转，试运转前，除一般检查输送机的安装是否符合安装技术要求外，尚需检查驱动装置，如采用电动滚筒内应按规定加够润滑油（电动滚筒使用前应从端盖的加油口加入L-AN32机械油，油质应清洁，无杂质，加油量应使油面达到滚筒半径2/3高度为宜）详见电动滚筒使用说明书如采用的是减速电机加链轮，链条，驱动，应依据随机资料中的减速机电机使用说明书，中规定的加油量及型号，加油，用户务必熟读；Before Test run:New installation conveyor in formal before going into use, should carry out the two hours and eight hours load no-load test run, prior to trial operation, in addition to the installation of general examination of conveyor is in accordance with the installation technology requirements outside, still need to check the driving devices, such as the use of electric roller according to regulations should add enough oil (electric roller should be on the front cover mouth to join L-AN32 Mechanical oil should be clean,, without impurities, how should make oil to roller radius two-thirds face height is appropriate) see electric roller instructions. If use is decelerating motors and sprocket, chain, drive, shall be based on random material of the deceleration mechanical and electrical machine specifications, the provisions in how and models, come on, the user must read .4.2.1电气信号和安全保护装置及接线正确性；Electrical signal and security protection devices and wiring correctness4.2.2点动驱动装置，观察滚筒转动方向是否正确。
The point start device drivers, observation roller rotation direction is correct 4.2.3调整清扫器，调整方法详见5.5.1及图（3）Adjust Belt cleaner, adjustment methods described in 5.5.1 and Figure (3)4.3试运转期间应进行下列工作(The following work should be carried out during the Test run)：4.3.1检查输送机各运转部件应无明显噪音；Check all moving parts conveyor should be no significant noise4.3.2各个轴承无异常温升；No abnormal temperature rise of each bearing4.3.3各个滚筒，托辊的转动及紧固情况;Each roller, roller rotation and tightness4.3.4清扫器的清扫效果Belt cleaner cleaning effect4.3.5输送带的松紧程度;Conveyor belt tightness4.3.6各个保护开关，应灵敏可靠Each protection switch, should be sensitive and reliable4.3.7测定带速，空载功率，满载功率Measured with a fast, no-load power, full power4.4调整(Adjustment)：4.4.1调整输送带的跑偏（Adjust belt deviation）：a、在头部输送带跑偏位置，调整头部传动滚筒，见示图 (1)，调整好后将轴承处的定位块螺栓拧紧，此时驱动装置可以不再跟随移动。
Deviation in the position of the head conveyor belt, drive pulley to adjust the head, see Figure shows (1), after adjusting the positioning of the bearing block at tightening the bolt, then move the Driving device can no longer follow. 图（1）b、在中间输送带跑偏，调整上托辊及下托辊，其调整方向,详见示图(2)，当调整一组托辊仍不能纠正时，可连续调整几组，但每组的偏斜角度不宜过大Deviation in the middle belt, adjust the rollers and the lower roller, the adjustment direction, see Figure shows (2), when adjusting a set of rollers is still not corrected, it can continuously adjust the several groups, but each of the partial oblique angle should not be too large.图（2）c、若上述办法仍不能消除跑偏，则应检查：输送带接头是否平直，必要时应重接；机架是否倾斜；给料方向位置是否合适在输送带的中间。
If the above method still cannot eliminate running deviation, should be check: conveyor belt joint is straight, as necessary, re-take; rack is tilted; feeding direction of the location is appropriate in the middle belt. d、上述调整，应在输送机空载或满载时进行，输送带跑偏为带宽5%左右为准These adjustments should be no-load or full load in the conveyor when the conveyor belt deviation of about 5% of the bandwidth.4.4.2调整输送带的预拉力，使输送机在满载启动及运行时输送带与传动滚筒不产生打滑，并且使输送带在托辊间的垂直度小于托辊间距的2.5%Adjust the tension of the conveyor belt, start with full load and operation in conveyor belt transmission roller and when do not produce sliding, and make the belt roller in the vertical degree between roller spacing of less than 2.5% 4.5、整机运输性能(Performance of the whole transport)：4.5.1、输送机运行应平稳可靠，负荷运行时不应有不转动辊子存在。
Conveyor should be smooth and reliable operation, the load should not be running there is not rotating roller4.5.2、输送带运行时，其边缘不得超出托辊辊子或滚筒的边缘Conveyor belt is running, the edge shall not exceed the idler roller or edge roller4.5.3、拉紧装置应保证调整方便，移动灵活，在输送机启动和运行过程中，输送带不得打滑Lose tension device should ensure easy adjustment, mobile and flexible, conveyor up and running in the process, the conveyor belt may slip4.5.4、输送机负荷运行时，噪音不得超过85dB（A）Conveyor load operation, the noise should not exceed 85dB (A)4.5.5、清扫器性能应稳定，清扫效果良好。
Performance should be clean and stable, good cleaning results4.5.6、各种保护装置，装配后需要反应灵敏，可靠A variety of protection devices, the assembly should be reflected after the sensitive and reliable4.5.7、托辊辊子（不包括缓冲托辊辊子），正常使用寿命不应小于2年2年内辊子的损坏率不大于8%（日晒、雨淋状况条件下除外）Roller rolls (not including buffer roller rolls), normal life should not be less than two years. 2 years of roller damage rate is not more than 8% (the sun and rain status condition except) 5、安装操作和维护保养：输送机的使用寿命与输送机的长期正常运转，是否正确、安全地操作，是否定期维护保养有直接的关系Installation, operation and maintenance:Conveyors and conveyor life of long-term normal operation, correct, safe operation, whether regular maintenance has a direct relationship5.1、不正确的操作会造成设备和人身事故。
造成设备事故的主要原因是物料砸坏输送带和跑偏、撕裂输送带Cause incorrect operation of equipment and personal accident. Is mainly due to an accident caused by equipment, conveyor and material deviation smashed, torn conveyor belt5.2、必须及时排除引起跑偏的因素引起人身事故的原因通常是在输送带运转时进行清理或更换零部件，因此维修制度是避免事故的重要措施之一Must promptly remove the factors causing deviation.Physical cause of the accident is usually caused by the conveyor belt is running to clean or replace parts, so maintenance system is one of the important measures to avoid accidents5.3、输送机应尽量在带上物料卸净后停车，并以空载启动为宜。
在多机联合使用组成输送系统时，亦应按此要求编制先后启动关闭的电气控制系统Conveyor belt material should be unloaded in the net after the stop, and to start no-load advisable. Joint use of components in the delivery of multi-machine system, the preparation of this request should have started off the electrical control system5.4、每台输送机应有使用维修记录，做好交接班工作Each conveyor with maintenance records, doing shift work.根据输送机的不同工作条件，可参照下列内容编制维护保养制度According to the different work conditions of belt conveyor, we can refer to the following content of maintenance system 5.5.班间维修内容: 经常注意观察减速器或电动滚筒的油面批示器，及时添加润滑油；及时更换转动不灵活的各轴向大于2mm的托辊辊子，在经过维修后才能继续使用 Maintenance of content between classes:Always observe the speed reducer oil or electric drum instruction device, time to add oil; the timely replacement of the axial rotation is not greater than 2mm flexible idlers rollers, after repairs to continue using5.5.1、清扫器作用是清理粘结在托辊和滚筒表面上的物料；聚氨酯刀片磨损后及时调整(或硬合金清扫器位置调整)调整；见示图(5)头部清扫器的调节过程。
Sweeper role is to clean up adhesive roller and roller in the material on the surface; polyurethane blade worn to adjust (or hard alloy sweeper position adjustment) adjustment; see Figure shows (5) head cleaning device of the adjustment process图(3)1聚氨酯刀片(或硬质合金) Polyurethane blades(Or carbide)2清扫器连杆(Belt cleaner rod)3拉紧螺杆(Tighten the screw)4支板(Supporting plate)5调节板(Adjustment board)6螺钉(Screws)调节方法：调节支板与调节板上连接螺栓，清扫器可上下调节，先松序号5螺钉，然后调节拉紧螺杆3，可以调节序号1聚氨酯刀片(或硬质合金)与滚筒的轻紧度Adjustment method: adjuster plate and adjustable plate bolts, Belt cleaner can be adjusted up and down, No. 5 Screws loose first, then tighten the adjustment screw 3, number 1 polyurethane blade can be adjusted (or carbide) and the roller light-tightness.清理粘结在托辊和滚筒表面上的物料；Cleanup bond on the roller and roller surface of material 5.5.2、清理受料段及输送机走廊上的散落物；Clean-up by the material conveyor section and the fallout on the corridor5.5.3、输送带表面的剥落情况，及时修补。
The situation of conveyor belt surface peeling off, and timely repair5.6、小修内容(Contents of minor repairs)： 一般一年一次清洗减速器或轴承座，并更换润滑油；清洗滚筒轴承座，并更换润滑脂；更换清扫器、清扫头；修补输送带Generally once a year.Cleaning gear or bearing, and replacing lubricants;Cleaning roller bearing, and replace the grease;Replacement cleaner, cleaning head;Repair conveyor belt.5.7、大修内容（Overhaul of the content）：几年一次拆洗减速器或电动滚筒，并检查齿轮的磨损情况若磨损超过赤顶宽的1/5以上时，应予以更换；修补或更换输送带；A few years time.Washable reducer or electric rollers, and check the situation of gear wear. If you wear red top width of more than 1 / 5 of the above, should be replaced, should be replacedRepairing or replacing conveyor belts6、需润滑的部位见表:润滑部位润滑剂牌号润滑期限备 注托辊辊子、调心立辊矿用托辊锂基润滑脂三年以上改向滚筒轴承座ZL—3（GB501—65）一年拆盖清洗更换驱动装置详见使用说明书详见使用说明书Parts to be lubricated in Table：Lubricating partsLubricants brandLubrication periodRemarksIdler roller, spherical roller standMine rollers lithium greaseMore than three yearsBend pulley bearingZL—3（GB501—65）Split year replacement cover cleaningDriving devicePlease refer to instruction manualPlease refer to instruction manual。
