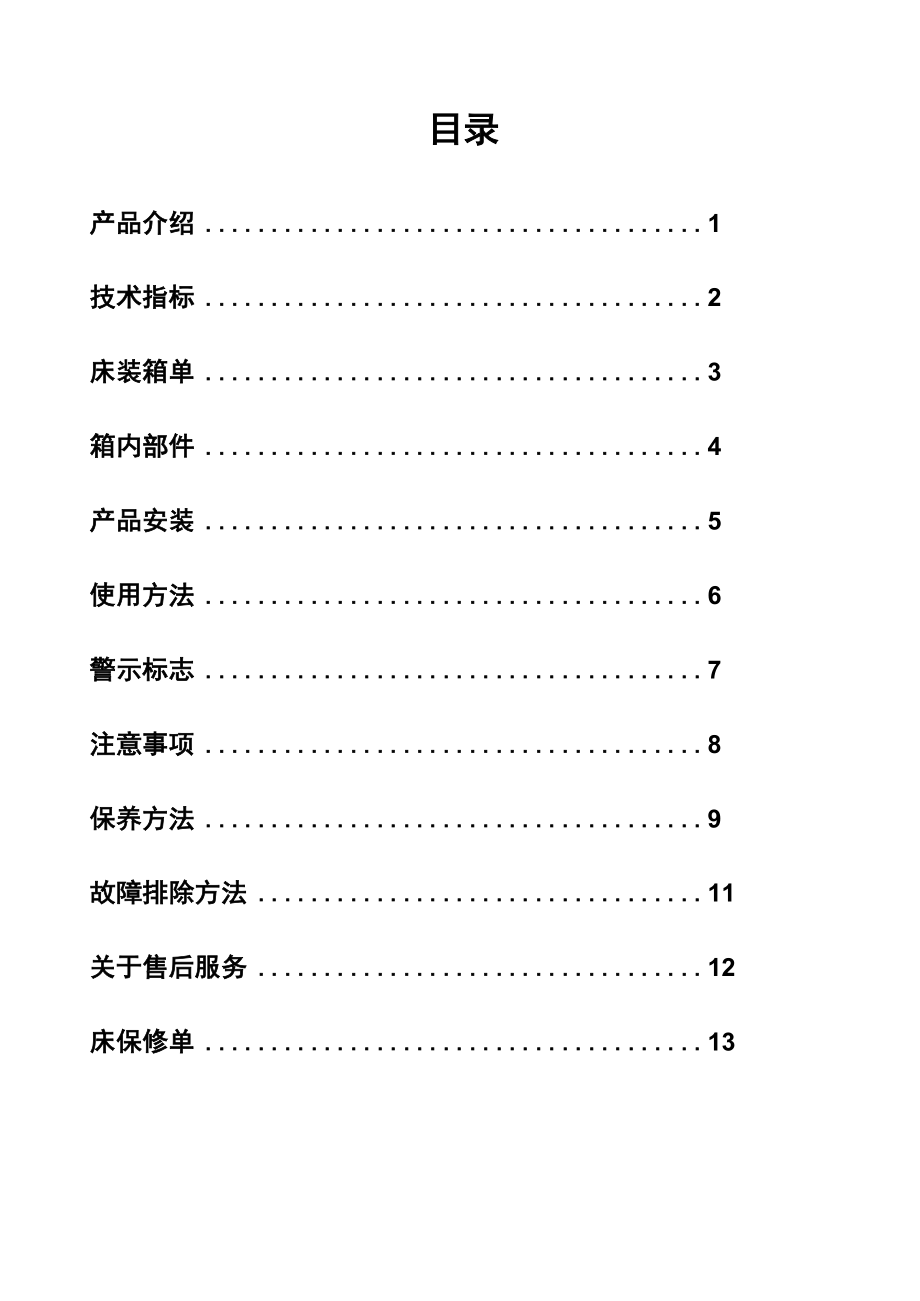

目录产品介绍 1技术指标 2床装箱单 3箱内部件 4产品安装 5使用方法 6警示标志 7注意事项 8保养方法 9故障排除方法 11关于售后服务 12床保修单 13产品介绍博朗电动护理坐便病床（型号BL-FA001）是我公司在中国首家请进国外技术，并获得国家 专利证书使用电动护理坐便病床，只需要操作按钮随意调节背部和腿部的不同角度，能使在电动 护理坐便病床上修养的人，如同坐在椅子上的自然姿势那样使人感到舒适使用电动护理坐便病床能有助于在替换衣服或变换身体位置时减少不适而提供方便还能在病 床上吃饭、喝茶、看电视盒读书写字，及方便又舒适既使生活不能自理者，通过床上按钮，在床 上可以随意大小便，也大大减轻护理人员劳动负担同事，为了避免病人由于长期卧病而产生褥疮， 有助于早日康复我公司采用床垫是聚酯纤维新材料它具有良好的透气性，特难燃烧的材质，非 常轻便，便于搬运等特点一、 该产品只要结构：有背板，腰板，腿板，足板，床栏头端板，床栏脚端板，便盆和 补位垫，护栏，床垫，桌板，脚轮等组成背板最大折起角：习0°；腿板、足板折 起角＜130°、腿板下折角N50°；桌板前后移动范围：N450mm；二、 该产品适用范围：供患者修养，接受诊疗等用。
三、 该产品正常工作条件：-10°-55°，相对湿度＜85°，大气压力：86kpa-106kpa，电 源：（220 + 22） V，频率（50±1） Hz此外，该护理坐便病床均采用优质碳素钢材焊接而成动力装置采用永磁直流全封闭式电机 它具有噪音低、载重量大、适用寿命长的有点此外，还装有聚氨脂静音万向轮，便于移动另外 配有刹车、拆卸式护栏，ABS床板可瞬间拆卸电动护理坐便病床科技领先，功能齐全、性能卓越、适用更方便，可由于专业病房，也可用于 康复病房、疗养院以及家庭适用亲爱的用户：非常感谢您购买本公司［博朗BL-FA001］产品适用本产品前，请仔细阅读本操作说明书，正确使用在本使用说明书内附有保修单今后在报修时要用到本说明书，因此请妥善保存说明书技术指标型号BL-FA001品名电动护理坐便病床底架钢网架焊接喷塑基架矩形钢管焊接喷塑床头板ABS制塑床面长X宽(1930±30) X (870±30)mm床面最低离地距W450mm足板最低离地距W190mm床头板高度头端(550±30)mm 脚端(450±30)mm床头板宽度920±30mm护栏高X宽(330±30)X(1040±30)mm桌板长X宽（正负公差±10mm）950X290mm (承重 10kg)背板最大折起角N70°腿板、足板折起角W130°腿板下折角N50°桌板前后移动范围N450供电电源电压(220±22) V (50±1) Hz载重170kg自重72kg输入功率400VA电流4A熔断器250VT1A运行模式间歇加载连续运行S2-10minBL-FA001型电动护理坐便病床装箱单箱名零部件名称数量床体箱基架部分床体基架 电动装置一台1套脚轮特制脚轮万向脚轮2件2件床板网架1副1套护栏床垫、床垫套坐便盆以上部位已安装好在床上头部床板1副安装与操作说明书1份箱内部件图一个人即可完成床体安装，但如果两个人一起安装，将会更加顺利。
请确认箱内有以下零件产品安装图1-1 将床头尾板上插件保险勾打开，对准基架上的螺钉，插入后向下移动固定，随后把床板插件保险勾放下1-2 床体内放便盆的位置使用方法通电显示灯背部的操作按背部▲按钮，背部上升按背部▼按钮，背部降低若中途松开按钮，则背部就停止在松开的位置背和脚部一体的操作按盅按钮，背部上升，脚部降低A按是按钮，背部降低，脚部上升若中途松开按钮，则背部和脚部就停止在松开 的位置脚部的操作按脚部▲按钮，脚部上升按脚部▼按钮，脚部降低若中途松开按钮，则脚部就停止在松开的位置便盆的操作按便盆▲按钮，补位垫下降，便盆会上升到床板的便盆口按便盆▼按钮，便盆下降补位垫会恢复到复位注：1、背部的操作、脚部的操作、便盆的操作可以分别进行，也可以同时进行2、将床的脚部调低后，从床上下来时，脚底可以接触到地面，比较安全注意事项请正确适用造作，以确保安全，在使用病床过程中应严格遵守以下事项1、 请防止身体及手脚、小孩、宠物、物品等进入电动护理病床内2、 请不要将手脚等探入床底等可活动部位，可能引起受伤，骨折3、 务必拧紧螺钉，以防造成重大事故4、 翻倒，破损可能引起受伤，禁止坐靠5、 电机上有警示标志，请勿触摸。
6、 绝对禁止自行拆御，以防触电保养方法运输和贮存：经包装后的电动护理坐便病床可用普通运输工具运输运输中应防止强烈冲击、 震动、挤压和受潮经包装后的护理病床，应存放在干燥剂通风良好无腐蚀性气体的室内清洁床本体时，将布在用水稀释的中性洗涤剂中浸湿，绞干擦拭，然后用干部擦拭请不要 用稀释剂、汽油、酒精等挥发性化学溶剂）请经常用抹布和刷子清洁电机周围的驱动部位要求用户至少每年检查一次病床正常使用的情况在病床的使用过程中，床罩要经常进行清洗注意事项患者在床上无人看护的情况下，为了减少患者上下或者躺在床上滚落而造成伤害的危险，应该将床 位置于最低位，请保持正确的造作方法请不要2人共用（应该1人用）腿部支架抬高（床为水平）状态下，请不要在床上放置重物请使用专用床垫如果使用一般的无法曲折的床垫，可能造成事故移动床体时，不要抓住两侧的护栏床体在需要移动时，先要操作倾斜按钮上升脚部支撑点，窗体定位后，要放下脚部支撑点不要将易燃物品放置床边请不要将水果汁等液体泼在按钮开关上建议操作者在使用过程中避免与强磁共同使用，以免产生干扰由于不恰当的处置软电线可能会造成安全方面的危险如：滚轮滚过电缆线或电线，头/脚，板组件与可移动部件间的挤压。
故障排除方法故障手控开关没有反应电源线的插头有没有插好插座上是否有电是否长时间连续使用请将插头插好在插座上插其它电器来确认请等待1分钟后操作操作时发出噪音请确认杂音来自那里 是否夹有异物如果是活动部位，请加润滑油 请出去杂物电机在不操作情况下有反应手控按钮开关是否失灵请及时拔除手控开关上得圆 口应急圈亲爱的用户:一、 承蒙您选用本公司产品，在此深表谢意二、 本公司宗旨“关爱人生，共享幸福”三、 本产品附带有保修单请确认（销售商店、购买日期）填写无误后，仔细阅读保修单的内容并 请妥善保管售后服务1、 保修期为壹年（按发票当日计算）2、 壹年保修期过后的修理服务，您需要支付维修费和上门维修费免修范围1、 在保修期内发生故障需要免费维修时，请联系您所购买本产品的销售店或者直接向本公司联系， 在维修人员修理前请出示本保修单2、 在保修期内诺根据使用说明书正常使用中出现故障，免费给予维修（不包括床垫）不免修范围1、 由于使用失误或自行修理及造成不当引起的故障及损坏2、 购买后由于跌落、碰撞等引起的故障及损坏3、 火灾、地震、水淹、雷击等其它自然灾害和电压异常等引起的故障及损坏4、 没有提交本保单的情况下5、 本保修单没有记载购买年月日、顾客姓名、销售店名或字句被改的情况下。
环境保护该设备及附件在其使用寿命未到时，本公司将对有关废弃物进行回收统一处理，使用者切勿自行处 置以免造成环境污染本保修单将承诺，谁销售谁负责的售后服务原则在购买本产品后，销售商负责送货上门并负责安装调试如果您在外省购买本产品，将由我们总公 司委托外省代理商全权负责一切售后服务事宜在要求修理前请再次仔细阅读本操作说明书，如果您还不能解决问题请与销售商店联系，请告诉销 售商店您所购买的产品名称型号和具体故障情况关于售后服务如有不明白的地方，请与您的销售商店联系或者直接向总公司客服联系保修单品名BL-FA001生产编号保修期间保修范围时间（从购买日起）床（不包括床垫）壹年购买日期年 月 日姓名联系方式住址本保修单保证按记录的壹年保修期内进行无偿修理服务您从购买日起壹年保修期内如果发生 故障，请出示保修单，向您购买本产品的销售商店要求休息维修记录:日期故障现象销售店地址号码损坏零件维修员本保修单保证本单所写明的时间、条件下进行免费的修理，有关保修期结束后的修理事宜，您可以向您的销售店咨询本保修单遗失不补，请妥善保存、切勿遗失目录(Catalogue)Product introduction 1Technology data 2Packing list for bed 3Conponents inside 4Product installation 5Usage 6Warnning sign 7Attention 8Maintenance Mothod 9Troubleshooting Mothods 11About after-sale sevice 12Guarantee 13Bolang electric nursing sit hospital bed (Model:BL-FA001) is the first company in china come in foreign tech and gain national patent certificate. While using electric toilet seat hospital bed, the patient just press the button to adjust the angles, which will make the patient feel comfortable as if he or she were seated in a normal chairWhile using electric toilet seat hospital bed,there is less discomfort and can give you more convenience when the patient change clothes or body position.and also it is very convenience and comfortable for the patient to eat ,drink,watching tv ,read and writting.Even if the patient can’t take care of herself or himself,but pressing the buttons ,they can public urination and defecation in any time, also reduce the burden of nursing staff.Meanwhile,avoiding the patients performing hand jobs which are not allowed at hosiptal 。
The bed mattress which good air permeability and hard to burn is made of new material called polyester fiber, it is very light and so that to transport.Product instructure: the bed is make up back veneer ,winscot,leg panels,foot plate,bed head end plate, foot bed end plate, bed pan,guardrail, mattress, table plate,and truckle . The biggest fold angle of back veneer should be；70the angle of leg panels,foot plate should be^130the angle of leg panels should be 250the moving range of table plate should be 2450mm.Range of application: For patients with accomplishment, accept the diagnosis and treatment etc.Product normal working conditions: temperature:-10°-55°, Working Humidity:<850, atmospheric pressure： 86kpa-106kpa, power： (220±22) V, rate (50±1) Hz。
The electric nursing toilet seat hospital bed adopts high quality carbon steel welded together.Power plant adopts permanent magnet dc totally enclosed motors. It has a low noise, large capacity, long service life. In addition, also equipped with polyurethane mute universal wheel, easy to move. Additionally equipped with brake, disassembly type guardrail, ABS bed board can instantly remove.The electric nursing toilet seat hospital bed sickbed leading technology, complete functions, outstanding performance, more convenient, it can be used professional room, also can be used in the rehabilitation wards, nursing homes, and family.Dear users:Thank you very much for you buy our company products [bolang BL - FA001].please read the operating instructions carefully and used correctly.before when you using this product In this instruction manual comes with a warranty. Should use this manual when repair service in the future, so please keep the instructions.Technology dataModelBL-FA001PartsElectric nursing toilet seat hospital bedUnderframeSteel frame welding coatingBed frameRectangular steel tube welding coatingBed head boardABS plasticBed surface(lengthXwide)(1930±30) X (870±30)mmMinimum distance from surface to the earth<450mmMinimum distance from Foot plate to the earth<190mmThe height of bed headboardHead end(550±30)mmFoot end(450±30)mmThe wide of bed headboard920±30mmGuiderail(heightXwide)(330±30)X(1040±30)mmTable plate(lengthXwide)Plus-minus tolerance(±10mm)950X290mm (load-bearing10kg)The biggest fold angle of back veneer>70°The fold angle of leg panels,foot plate<130°The angle of leg panels>50°The moving range of table plate>450Mains input(220±22) V (50±1) HzLoading weight170kgDead-weight72kgInput power400VAElectricity4AFuse protector250VT1AOperational modeIntermittent load run continuouslyS2-10minElectric nursing toilet seat hospital bedPacking list (Model :BL-FA001)Box nameConponents namequantityBed body boxPedestal partElectric device of Bed pedestal1 unit1 setsTruckleSpecial truckle Universal truckle2件2件Bed board rack1 sets1 setsGuiderailMattress、Mattress protectorBedpanAll the above parts are installed in the bedThe head plate1副Installation and operating instructions1份The photo of the conponents for a bedProduct installation drawing1-1 Open the Plug-in the insurance hook located on head of a bed tail plate e, aim at screw on the base frame ,moving it and fixed toward down after insert, then put the bed board plug-in insurance hook down.1-2 The section of bedpan in the bodyUsage mothodPower indicator lightThe back's operationPress the ▲ button of back, the back rises up Press the ▼ button of back, the back rises up If loosen the button midway, the back stops in the release positionBack and feet integrated operationPress the button, Back rises up, foot drops downPress the button , Back drops down, foot rises upIf loosen the button midway, the back and feet stops in the release positionThe operation of the footPress the foot butoonA, foot rises upPress the foot button▼, foot drops down。
If loosen the button midway, the foot stops in the release positionThe operation of the bedpanPress bedpan button▲, 补位垫 drops down, bedpan rises up to the便盆会上升到床板的便盆口notice：1、 the operation of the back, the operation of the foot, the operation of thebedpan can work separately, also can work at the same time.2、 When patients want to step down from the bed,they can Adjust the foot of bed dropping down, their foot can be touched the groundfor safelyAttentionPlease use correctly, in order to ensure safety, in the process of using the bed shall comply with the following items strictly.Please prevent the body and the hands and feet, children, pets, items into the electric care beds Please do not put hands and feet into bed which movable parts into bed , these may cause injury, fracture.Be sure to tighten the screw to prevent major accidentsAny overturned, damage may cause injury, forbidden to sit onThere is warning sign on motoi, do not touch.avoiding shock which dismantlement is forbiddened absolutely ,Maintenance Mothod …Transportation and storage: it is available to use common transportation after packing the electric nursing toilet seat beds . should prevent intense impact, vibration and extruding and be affected with damp During transit. , should be stored in indoor desiccant ventilation without corrosive gas After packaging the nursing bedWhen Cleaning the bed body, will cloth soaked in neutral detergent diluted with water wring dry wipe, then use cadres to wipe. (please do not use thinner, gasoline, alcohol volatile chemical solvent, etc.)Please always use dishcloth and brush clean the driving area around the motor .Requires the user to check normal using conditions of bed no less than once a yea, ,In the process of using the bed, bedspread need to be cleaned usually.AttentionUnder the condition which no one take care of patients , in order to reduce the patients lie in bed or up and down tumbled and the risk of harm, should put beds at its lowest level, please keep the correct artificial method.There is only one person to use(not two person sharing)Bed legs stand up (level), please do not place heavy objects on the bedPlease use the special mattress. If you use common mattress which not be twists and turns of mattress, may cause an accidentWhen Moving bed body, don't catch on either side of the fence.The Bed body need to be moved,please press tilt button, Up the foot support, form the localization, to put the foot support.Do not place flammable objects by the bed.Please don't spill fruit juice like liquid on the push button switch.Suggest the operator avoid using with strong magnetic jointly, lest produce interference.Due to the improper disposal of soft wire may cause security risk. Such as cable or wire rollerthehead/foot, plate group are extrusion between the moving parts.Trobleshooting methodBreakdownProblemmethodManunal switch no responseIf the power cable plug is okIf the socket has powerIf it is a long time to usePlease insert the plug wellInsert the other appliance on the socket to checkPlease operate after one munitesThere is noise when it worksPlease comfirm the noise where is from If there is foreign bodyIf it's activity area, please add lubricating oilPlease remove the dopantMotor has reaction without workIf the manual switch is failurePlease pull out the hand switch on emergency circle round mouthDear users:Thank you choose our products, appreciate here sincerely.Our company tenet "love life, share happiness".This product comes with warranty. Please confirm (sales store, purchase date) is correct, reading the content of the warranty carefully and please safekeeping.After-sales seviceWarranty for one year (According to the invoice date )you need to pay the maintenance costs after one year warranty repair sevice.Range of repair for without payPlease contact with the saler who you bought with or contact company derectly when there is problem to need repair which in the warranty date. Please show the warranty before the maintenance personnel to repair.During the warranty period, if appears problem according to the instruction manual in normal use, free of charge for maintenance (not including mattress)Range of Repair for with payDue to improper using fault or repair itself and cause of the malfunction and damage.After buying caused by fall, collision and so on fault and damageFire, earthquake, flood, lightning and other natural disasters or abnormal voltage caused by fault and damage.No submitted under the condition of this policyThis warranty does not relate to purchase date, customer name, sales name or word is changed.environmental protectionThe service life of equipment and accessories doesn't reach time , our company will handle the waste recycling processing, user's can't own disposal so as not to cause environmental pollution. Who will the warranty commitment, sales who is in charge of after-sales service principles.After buying the product, the seller is responsible for door-to-door delivery and is responsible for the installation and debugging. If you buy this product in other provinces, consign by our head office, provincial agent is solely responsible for all after-sales service.please read the operating instructions carefully before repairing, if you still cannot solve the problem please contact sales store, tell sales store you purchased the product name and model ofconcrete failure condition.About after-sales service,if there are some you cant understand , please contact your sales store, or contact customer service from head-office directly.Warranty billParts nameBL-FA001Production refThe warranty periodWarranty rangeTime (From purchaing date)Bed(mattress is not included)One yearPurchasing dateY M DNameContact wayAddressThis warranty guarantee according to the records of the one year warranty for free repair service. If it is in one year warranty from the date of acquisition failure occurs happend, please show warranty bill, asked the store seller you buy this product before in the shop for repairing.Maintenance record:DateTroublesStoreAddressTel numberDamaged partsRepairmanThis warranty guarantee indicated by this single time, under the condition of repair , free of the relevant matters related to repair after the warranty period, you can consult your dealership. This warranty lost not fill, please keep, never lost.。
