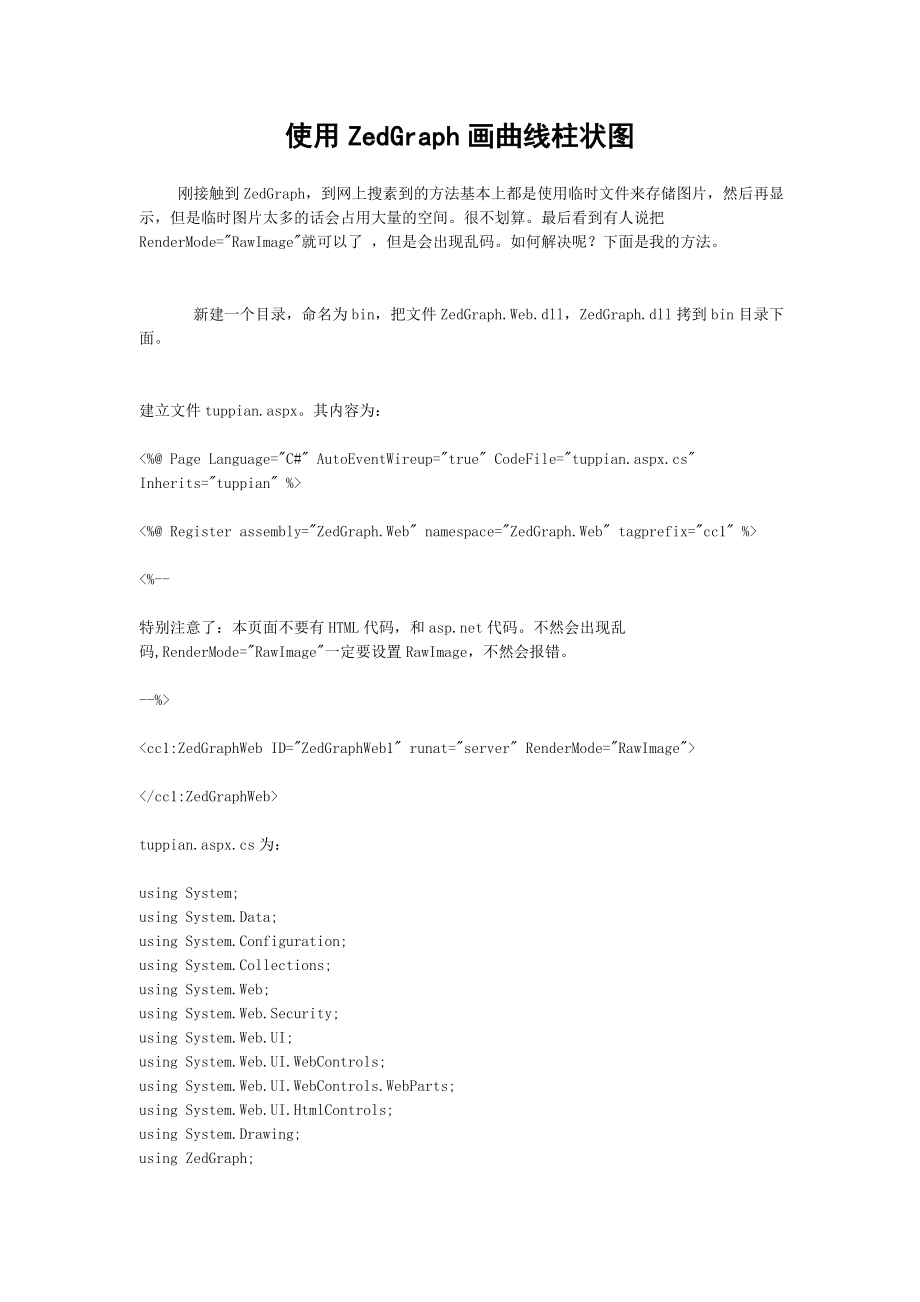

使用ZedGraph画曲线柱状图 刚接触到ZedGraph，到网上搜素到的方法基本上都是使用临时文件来存储图片，然后再显示，但是临时图片太多的话会占用大量的空间很不划算最后看到有人说把RenderMode="RawImage"就可以了 ，但是会出现乱码如何解决呢？下面是我的方法 新建一个目录，命名为bin，把文件ZedGraph.Web.dll，ZedGraph.dll拷到bin目录下面建立文件tuppian.aspx其内容为：<%@ Page Language="C#" AutoEventWireup="true" CodeFile="tuppian.aspx.cs" Inherits="tuppian" %><%@ Register assembly="ZedGraph.Web" namespace="ZedGraph.Web" tagprefix="cc1" %><%--特别注意了：本页面不要有HTML代码，和代码不然会出现乱码,RenderMode="RawImage"一定要设置RawImage，不然会报错>tuppian.aspx.cs为：using System; using System.Data; using System.Configuration; using System.Collections; using System.Web; using System.Web.Security; using System.Web.UI; using System.Web.UI.WebControls; using System.Web.UI.WebControls.WebParts; using System.Web.UI.HtmlControls; using System.Drawing; using ZedGraph; using ZedGraph.Web; public partial class tuppian : System.Web.UI.Page { DarwGrapClass dg = new DarwGrapClass(); protected void Page_Load(object sender, EventArgs e) { } protected override void OnInit(EventArgs e) { InitializeComponent(); base.OnInit(e); } private void InitializeComponent() { string id = Request.QueryString["id"]; switch (id) { case "1": DrawLine(); break; case "2": DrawPie(); break; default: DrawBar(); break; } } private void DrawBar() { dg.Type = AnalyticsType.Bar; dg.Title = "用户访问柱状图"; dg.XAxisTitle = "月份"; dg.YAxisTitle = "用户访问数量"; Random rand = new Random(); string[] aa = { "企业1", "企业2", "企业3" }; for (int i = 0; i < 2; i++) { ZedGraph.PointPairList ppl = new ZedGraph.PointPairList(); for (int j = 0; j < 12; j++) { double x = rand.Next(10); double y = rand.NextDouble() * 100; ppl.Add(x, y); //dg.NameList.Add((j + 1).ToString() + "月"); //ppl.Add(j+1,j+1);以此递增 //dg.NameList.Add("第" + j.ToString() + "月份"); } dg.DataSource.Add(ppl); dg.LabelList.Add("企业" + i.ToString()); //dg.NameList.Add((i + 1).ToString() + "月"); } for (int k = 0; k < 12; k++) { dg.NameList.Add((k + 1).ToString() + "月"); } dg.y_step = 5; dg.DarwGrap(ZedGraphWeb1); } private void DrawPie() { dg.Type = AnalyticsType.Pie; dg.Title = "用户访问饼图"; Random rand = new Random(); for (int i = 0; i < 3; i++) { dg.ScaleData.Add((i + 2) * rand.Next(100)); dg.NameList.Add("企业：" + i.ToString());//各个部分所代表的含义 } dg.DarwGrap(ZedGraphWeb1); } private void DrawLine() { dg.Type = AnalyticsType.Line; dg.Title = "用户访问曲线图"; dg.XAxisTitle = "月份"; dg.YAxisTitle = "用户访问数量"; Random rand = new Random(); for (int i = 0; i < 2; i++) { ZedGraph.PointPairList ppl = new ZedGraph.PointPairList(); //数据源添加 for (double x = 0; x < 12; x += 1.0) { double y = rand.NextDouble() * 100; ppl.Add(x, y); } //从数据库中取得 //for (int i = 0; i < this.dt.Rows.Count; i++) //这个循环主要是取到里面的说明文字，用了一个数组的方法 //{ // ppl.Add(i,this.dt.Rows[i].Cells[1].Text.Trim()); //} //dg.NameList.Add("第" + i.ToString() + "月份"); dg.DataSource.Add(ppl); dg.NameList.Add("企业：" + i.ToString()); } //改变x组的显示字符，当然也可以绑定数据库，从数据库中取得。
for (int k = 0; k < 12; k++) { dg.LabelList.Add((k + 1).ToString() + "月"); } //for (int i = 0; i < this.dt.Rows.Count; i++) //这个循环主要是取到里面的说明文字，用了一个数组的方法 //{ // dg.LabelList.Add(this.dt.Rows[i].Cells[0].Text.Trim()); //} dg.DarwGrap(ZedGraphWeb1); } }新建一个类DarwGrapClass.cs，放在App_Code目录下面其内容为：using System; using System.Data; using System.Configuration; using System.Web; using System.Web.Security; using System.Web.UI; using System.Web.UI.HtmlControls; using System.Web.UI.WebControls; using System.Web.UI.WebControls.WebParts; using System.Drawing; using ZedGraph; using ZedGraph.Web; using System.Collections.Generic; public enum AnalyticsType { Line, //折线图 Line2,//带阴影区域的折线图 Curve,//带星的折线图 Curve2,//带阴影区域的星行折线图 Bar, //柱状图 Graph, Pie //饼图 }; public class DarwGrapClass { public DarwGrapClass() { // //TODO: 在此处添加构造函数逻辑 // } #region Private Attribute /**/ /// /// 默认颜色种类 /// private List defaultColors = new List(); /**/ /// /// 统计的个数 /// private int Count; #endregion //Public Property; #region Public Property /**/ /// /// 统计图的名称 /// public string Title; /**/ /// /// 横轴的名称（饼图不需要） /// public string XAxisTitle; /**/ /// /// 纵轴的名称（饼图不需要） /// public string YAxisTitle; /**/ /// /// 显示的曲线类型：Line,Bar,Pie /// public AnalyticsType Type; /**/ /// /// 折线图和柱状图的数据源 /// public List DataSource = new List(); /**/ /// /// 饼图的数据源 /// public List ScaleData = new List(); /**/ /// /// 各段数据的颜色 /// public List Colors = new List(); /**/ /// /// 各段数据的名称 /// public List NameList = new List(); /**/ /// /// 用于柱状图，每个圆柱体表示的含义 /// public List LabelList = new List(); public double y_step; public double x_step; #endregion public void DarwGrap(ZedGraphWeb ZedGraph) { ZedGraph.RenderGraph += new ZedGraph.Web.ZedGraphWebControlEventHandler(zedGraphControl_RenderGraph); } private void InitDefaultColors() { defaultColors.Add(Color.Red); defaultColors.Add(Color.Green); defaultColors.Add(Color.Blue); defaultColors.Add(Color.Yellow); defaultColors.Add(Color.YellowGreen); defaultColors.Add(Color.Brown); defaultColors.Add(Color.Aqua); defaultColors.Add(Color.Cyan); defaultColors.Add(Color.DarkSeaGreen); defaultColors.Add(Color.Indigo); } /**/ /// /// 如果属性为空则初始化属性数据 /// private void InitProperty() { InitDefaultColors(); if (string.IsNullOrEmpty(Title)) { Title = "未命名统计图"; } if (string.IsNullOrEmpty(XAxisTitle)) { XAxisTitle = "横轴"; } if (string.IsNullOrEmpty(YAxisTitle)) { YAxisTitle = "纵轴"; } if (Type == AnalyticsType.Pie) { Count = ScaleData.Count; } else { Count = DataSource.Count; } if (Colors.Count == 0 || Colors.Count != Count) { Random r = new Random(); int tempIndex = 0; List tempIndexList = new List(); for (int i = 0; i < Count; i++) { tempIndex = r.Next(defaultColors.Count); if (tempIndexList.Contains(tempIndex)) { i--; } else { tempIndexList.Add(tempIndex); Colors.Add(defaultColors[tempIndex]); } } } if (NameList.Count == 0) { if (Type == AnalyticsType.Bar) { for (int i = 1; i < DataSource[0].Count + 1; i++) { NameList.Add("第" + i.ToString() + "组"); } } else { for (int i = 1; i < Count + 1; i++) { NameList.Add("第" + i.ToString() + "组"); } } } if (LabelList.Count == 0) { for (int i = 0; i < Count; i++) { LabelList.Add("含义" + i.ToString()); } } if (x_step == 0.0) x_step = 5; if (y_step == 0.0) y_step = 5; } /**/ /// /// 画图 /// /// /// /// private void zedGraphControl_RenderGraph(ZedGraphWeb zgw, System.Drawing.Graphics g, ZedGraph.MasterPane masterPane) { InitProperty(); GraphPane myPane = masterPane[0]; myPane.Title.Text = Title; myPane.XAxis.Title.Text = XAxisTitle; myPane.YAxis.Title.Text = YAxisTitle; //if (true) //{ // DrawMessage(myPane, "yiafdhaskjhfasfksahfasdlhfaslf lasgfasglgsadi"); // pane.AxisChange(g); // return; //} switch (Type) { case AnalyticsType.Line: DrawLine(myPane); break; case AnalyticsType.Bar: DrawBar(myPane); break; case AnalyticsType.Pie: DrawPie(myPane); break; case AnalyticsType.Line2: DrawLine2(myPane); break; case AnalyticsType.Curve: DrawCurve(myPane); break; case AnalyticsType.Curve2: DrawCurve2(myPane); break; default: break; } masterPane.AxisChange(g); } #region Draw /**/ /// /// 画折线图 /// /// private void DrawLine(GraphPane graphPane) { for (int i = 0; i < Count; i++) { graphPane.AddCurve(NameList[i], DataSource[i], Colors[i], SymbolType.None); string[] labels = LabelList.ToArray(); graphPane.XAxis.Scale.TextLabels = labels; graphPane.XAxis.Type = AxisType.Text; graphPane.Chart.Fill = new Fill(Color.White, Color.FromArgb(255, 255, 166), 90F); graphPane.Fill = new Fill(Color.FromArgb(250, 250, 255)); graphPane.YAxis.Scale.MajorStep = y_step; } } /**/ /// /// 画折线图,带阴影区域 /// /// private void DrawLine2(GraphPane graphPane) { for (int i = 0; i < Count; i++) { graphPane.AddCurve(NameList[i], DataSource[i], Colors[i], SymbolType.None).Line.Fill = new Fill(Color.White, Colors[i], 90F); string[] labels = LabelList.ToArray(); graphPane.XAxis.Scale.TextLabels = labels; graphPane.XAxis.Type = AxisType.Text; graphPane.Chart.Fill = new Fill(Color.White, Color.FromArgb(255, 255, 166), 90F); graphPane.Fill = new Fill(Color.FromArgb(250, 250, 255)); graphPane.YAxis.Scale.MajorStep = y_step; } } /**/ /// /// 画星行折线图 /// /// private void DrawCurve(GraphPane graphPane) { for (int i = 0; i < Count; i++) { graphPane.AddCurve(NameList[i], DataSource[i], Colors[i], SymbolType.Star); string[] labels = LabelList.ToArray(); graphPane.XAxis.Scale.TextLabels = labels; graphPane.XAxis.Type = AxisType.Text; graphPane.Chart.Fill = new Fill(Color.White, Color.FromArgb(255, 255, 166), 90F); graphPane.Fill = new Fill(Color.FromArgb(250, 250, 255)); graphPane.YAxis.Scale.MajorStep = y_step; } } /**/ /// /// 画星行折线图,带阴影区域 /// /// private void DrawCurve2(GraphPane graphPane) { for (int i = 0; i < Count; i++) { graphPane.AddCurve(NameList[i], DataSource[i], Colors[i], SymbolType.Star).Line.Fill = new Fill(Color.White, Colors[i],90F); string[] labels = LabelList.ToArray(); graphPane.XAxis.Scale.TextLabels = labels; graphPane.XAxis.Type = AxisType.Text; graphPane.Chart.Fill = new Fill(Color.White, Color.FromArgb(255, 255, 166), 90F); graphPane.Fill = new Fill(Color.FromArgb(250, 250, 255)); graphPane.YAxis.Scale.MajorStep = y_step; } } /**/ /// /// 画柱状图 /// /// private void DrawBar(GraphPane graphPane) { for (int i = 0; i < Count; i++) { graphPane.AddBar(LabelList[i], DataSource[i], Colors[i]).Bar.Fill = new Fill(Colors[i], Color.White, Colors[i]); //.Line.Fill = new Fill(Color.White, Color.Red, 45F); //.Line.Fill = new Fill(Color.White, Color.Blue, 45F); } graphPane.XAxis.MajorTic.IsBetweenLabels = true; string[] labels = NameList.ToArray(); graphPane.XAxis.Scale.TextLabels = labels; graphPane.XAxis.Type = AxisType.Text; graphPane.Chart.Fill = new Fill(Color.White, Color.FromArgb(255, 255, 166), 90F); //graphPane.Fill = new Fill(Color.FromArgb(250, 250, 255)); graphPane.Fill = new Fill(Color.White, Color.FromArgb(200, 200, 255), 45.0f); //graphPane.Chart.Fill = new Fill(Color.White, Color.LightGoldenrodYellow, 45.0f); graphPane.YAxis.Scale.MajorStep = y_step; //graphPane.BaseDimension =8; } /**/ /// /// 画饼图 /// /// private void DrawPie(GraphPane graphPane) { graphPane.Fill = new Fill(Color.White, Color.Silver, 45.0f); graphPane.Legend.Position = LegendPos.Float; graphPane.Legend.Location = new Location(0.95f, 0.15f, CoordType.PaneFraction, AlignH.Right, AlignV.Top); graphPane.Legend.FontSpec.Size = 20f; graphPane.Legend.IsHStack = false; for (int i = 0; i < Count; i++) { graphPane.AddPieSlice(ScaleData[i], Colors[i], Color.White, 45f, 0, NameList[i]); } } /**/ /// /// 如果系统出错，显示错误信息 /// /// /// private void DrawMessage(GraphPane graphPane, string message) { TextObj text = new TextObj(message, 200, 200); text.Text = message; graphPane.GraphObjList.Add(text); } #endregion } 最后，注意当画饼图时，有时注释会把图片遮住，这时只要设置图片长和高的比例就可以了。
曲线图和直方图的x組的说明文字如果太多的话，就会屏蔽掉一些，这是也只要设置长和高的比例就可以解决问题了。
