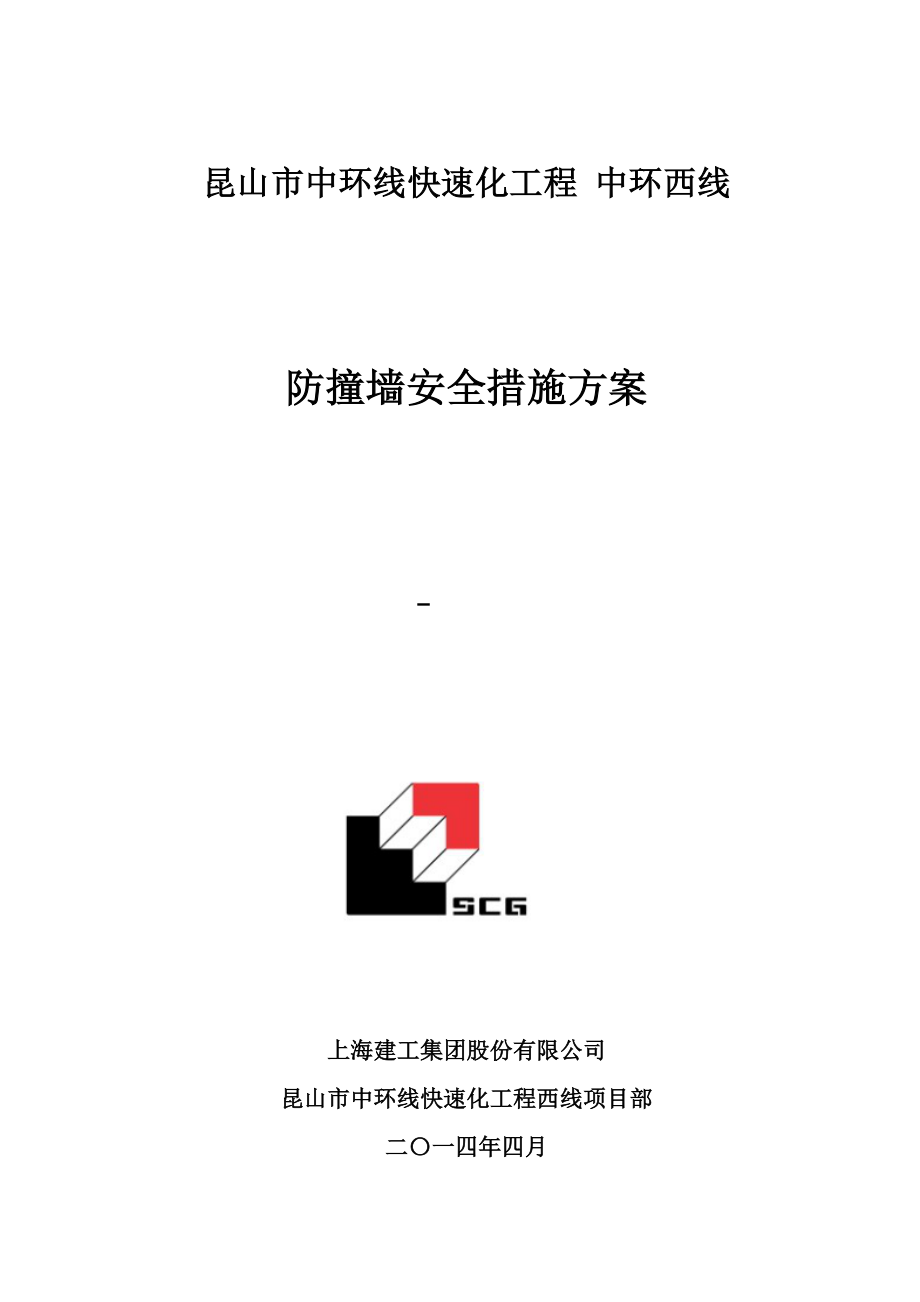

昆山市中环线快速化工程 中环西线防撞墙安全措施方案 上海建工集团股份有限公司昆山市中环线快速化工程西线项目部二〇一四年四月目 录1、工程概况 - 1 -1.1工程概况 - 1 -1.2编制依据 - 1 -1.3编制目的 - 2 -2、施工技术方案 - 3 -2.1总体设想 - 3 -2.2施工准备 - 3 -2.2.1技术准备 - 3 -2.2.2人员准备 - 3 -2.2.3施工机械准备 - 4 -2.2.4施工材料准备 - 4 -2.2.5设备进场情况 - 4 -2.3施工工艺流程 - 5 -2.3.1测量放线 - 5 -2.3.2吊支架施工 - 5 -附件一：防撞墙施工挂篮小吊车设计及验算 - 5 -附图一：防撞墙施工挂篮小吊车示意图 - 5 -附图二：防撞墙一字吊架施工安装示意图 - 5 -2.3.2钢筋制作和安装 - 7 -2.3.3模板加工 - 7 -2.3.3模板安装 - 8 -2.3.4混凝土浇筑 - 9 -2.3.5模板拆除及砼养护 - 9 -3、 防撞墙施工质量保证措施 - 10 -3.1 质量管理体系 - 10 -3.2主要质量保证措施 - 10 -3.2.1 质量验收制度 - 10 -3.2.3检测要求 - 12 -3.2.5 钢筋加工及安装验收标准 - 13 -3.2.6混凝土质量检验措施 - 13 -3.2.7 防撞墙质量检验标准 - 13 -4、安全生产及文明施工措施 - 15 -4.1 安全管理网络体系 - 15 -4.2 防撞墙施工安全措施 - 15 -4.3 现场文明施工措施 - 17 -4.4夜间施工技术措施 - 17 -1、工程概况1.1工程概况本标段防撞墙包含了主线高架桥及立交匝道桥，共计km，已完成km，预计5月底完成。
防撞墙断面图如下图：2、施工技术方案2.1总体设想在相应砼箱梁桥面铺装施工完成后，进行防撞墙施工2.2施工准备2.2.1技术准备1、技术人员要将工程概况、施工方案、技术措施及特殊部位的施工要点、注意事项等向全体施工人员作详细的技术交底，做到按设计施工图、规范和施工方案施工2、场内施工道路、水电畅通，做好各种施工机械的维护保养工作，并对全体施工人员进行全面质量管理及安全教育 2.2.2人员准备根据方案实施要求及施工进度和劳动力需求计划，组织一支具有强有力的管理团队，集结富有经验的施工队伍，组织劳动力分批进场，并建立相应的组织体系和管理制度劳动力进场情况（按具体情况相应增减）序号工种进场人数1电焊工62木工163钢筋工164砼工165普通工206机修工27汽车吊司机28指挥22.2.3施工机械准备施工机械设备的合理运用，是保证施工进度和施工质量的重要因素，对于防撞墙工程施工，我公司根据本工程施工要求，安排施工机械设备陆续进场，并做好机械的报验工作，确保工程高质量、高效率完成工程所需机械设备一览表序号机械设备名称型号规格数量1.汽车吊QY25K22.直流弧焊机23.钢筋切断机GD4014.钢筋调直机GTJ4/1415.数控钢筋弯曲机16.风镐27.空压机18.吊篮102.2.4设备进场情况1、投入工程施工吊篮、汽车吊等主要大型机械均已经自检报监审核。
2、进场设备均安排专职设备维修养护员进行统一维修养护管理2.3施工工艺流程桥面钢筋混凝土桥面铺装层浇筑完成后→放置控制线→吊支架施工→钢筋绑扎、电焊→内模安装矫正→外模安装→混凝土浇筑2.3.1吊支架施工 本工程采用吊支架工艺，现有箱梁翼板部位已预留吊排孔，横桥向有两个孔，横向间距440mm，纵桥向间距900mm，支架采用一字式，内侧有两个吊点吊挂，外侧留有单人操作面，顺桥向架设跳板后作为外模支撑面和工人操作面一字吊架安装时采用施工吊篮进行，吊篮设计及验算见附件附图一：防撞墙施工挂篮小吊车示意图3、安全生产及文明施工措施项目经理:唐海健项目副经理:韩珂君、叶明项目工程师：戴彬技术员：褚伟青、资料员：赵云轩、刘月萍各施工班组施工员：王新华、王训斌质量员:管世吉、测量员：吴青、李卫斌试验员：伊 晶材料员：陈骁华安全员：徐海良、王辉3.1 安全管理网络体系3.2 防撞墙施工安全措施1、严格遵守“安全生产六大纪律”，按照国家《建筑安装工程安全技术规程》及上海市有关建设工地文明安全施工的规定进行，在醒目处张挂安全示意牌2、安全员专职负责安全生产工作实行安全交底制度遵守国家《建筑安装工人安全技术操作规程》。
电工、焊工、起重司机操作人员，必须经过专门训练，熟知本工种安全技术操作规程，在操作中坚守工作岗位，非定岗人员不得随意操作机械及电器设备严禁酒后作业3、正确使用个人防护用品和安全防护措施，进入施工现场必须戴安全帽，穿工作服及劳保鞋，禁止穿拖鞋或光脚4、起重指挥应由技术熟练、懂得起重机械性能的人员担任；指挥时应站到能够照顾到全面的地点，所发信号应事先统一，并作到准确、洪亮和清楚严格遵守“十不吊”制度5、所有人员严禁在起重臂和吊起的桩下停留和行走；钢丝绳如有扭结、变形、断丝、锈蚀等异常现象，应及时降低使用标准或报废；编接绳扣（千斤）应使各股松紧一致，编接部分的长度不得小于钢丝绳直径的15倍，并不得小于300mm6、施工用电必须符合《施工现场临时用电安全规范》（JGJ46—2005）的要求，电焊机要有安全防护罩，且必须接地或接零主电缆采用三相五线制电缆；临时用电须经电工同意7、机械设备有专人管理、专人操作、严格遵守《建筑机械使用安全技术规范》 各司其责，严禁串岗8、电焊遵守“十不焊”制度；气焊气割所用乙炔瓶、氧气瓶距明火距离不得小于10米；乙炔发生器、乙炔气瓶、液化石油气瓶与氧气瓶的水平距离不得小于5米；其周围禁止烟火。
夏季施工乙炔、氧气瓶要有遮阳装置，防止曝晒，环境温度不得超过40℃氧气瓶、乙炔瓶在使用、运输、储存时，应避免受到剧烈震动和冲击，严禁从高处滑下或在地面滚动 ；禁止用起重设备的吊索直接拴挂气瓶9、箱梁临边设置安全防护栏，还要设置防护密目网，非施工人员不得进入施工区10、模板、钢筋等材料吊装时要保证安全如遇强风、雨、雪等特殊气候，应暂时停止防撞墙施工工作11、在安装模板现场设立警戒标志，禁止非作业人员进入现场，模板在安全系统未钉牢之前，人员不得上下所有作业人员带好安全帽，高空作业扣好安全带，并将工具放在工具包内，以防上下交叉作业时坠物伤人高处作业时作业人员应穿软底鞋，工作服紧束，戴好安全带，安全带保险绳要生根在牢固的构筑物上防止高处坠落工具要放在工具包内，随身携带垂直运输模板时，有专人统一指挥，负责作业安全12、禁止施工人员在脚手架上向下抛物，以防意外事故的发生13、振捣器等接电安全可靠，绝缘接地装置良好，并进行试运转振捣器操作人员必须穿胶鞋，振捣器必须专门防护性接地导线，并在电源接插板上装有漏电保护器，以免设备漏电发生危险如发生故障立即切断电源进行维修14、作业前，对防撞墙施工人员进行安全技术交底和安全教育，明确安全要求。
15、防撞墙施工时，施工段下面箱梁投影线往外5m范围内设置警戒区，严禁非施工人员进入此区域3.3 现场文明施工措施1、严格遵守《上海市交通建设工程文明施工标准（暂行）》 2、文明施工有专人负责,积极开展便民、利民、爱民和不扰民活动，按“两通、三无、五必须”的标准要求，为争创文明工地创造条件3、保持场容场貌的整洁，建筑垃圾及生活垃圾及时清除4、场地进出口做硬地面，运输车辆进出施工现场，随时冲洗泥土，不得污染周围道路及环境，工程验收确保“场地清”、无渣土垃圾等5、生活卫生应纳入工地总体规划，落实卫生专（兼）职管理人员和保洁人员，落实门前责任制3.4夜间施工技术措施1、物资、质量保证措施（1）建立夜间值班制度，做好周密的组织和技术交底，配备足够的物资，确保夜间施工顺利进行2）严格复核、检查制度，确保各项技术质量指标准确无误，符合设计和规范的规定3）严格隐蔽工程检查签证制度，夜间必须进行隐蔽工程施工时，应按规定提前通知监理工程师到现场检查，并办理签证手续，未经监理工程师检查签证，禁止进行下一道工序施工4）必须保证夜间施工期间照明充足本工程采用镝灯作为主要照明灯具，必须在场地适当位置装足够的照明设备，保证整个施工场地均有较好的照明，保证夜间施工有良好的照明条件。
采用碘钨灯作为临时可移动照明灯具，用于重要施工部位，作为对固定式照明的补充2、夜间施工的安全保证措施（1）充分考虑施工安全问题，不安排交叉施工的工序同时在夜间进行2）主线桥与原有道路交叉时，必须按国家的道路标线与标志的要求，设置交通安全标志，夜间设照明设施，并悬挂红灯警示3）做好夜间施工防护，在作业地点附近设置警示标志，悬挂红色灯，以提醒行人和司机注意，并安排专人值守4）夜间施工用电设备必须有专人看护，确保用电设备及人身安全5）夜间气候恶劣的情况下严禁施工作业6）夜间施工时，各项工序或作业区的结合部位要有明显的发光标志施工人员需穿戴反光警示服7）各道工序夜间施工时除当班的安全员、质检员必须到位外，还要建立质安主管人员巡查制度，发现问题必须立即解决8）实施具有重大危险源的工程项目时，必须根据重大危险源的应急救援预案措施，做好随时启动应急预案的准备3、夜间施工的环境保护措施夜间施工现场周围有噪声敏感区域，必须对周围社区告知，在23：00-6：00期间禁止施工，必须时要取得周围社区居民的谅解，使用的机械时尽量选择低噪声的设备，必须采用大噪声的设备时，必须采用降噪措施英文版 ） Two regulations promulgated for implementation is in the party in power for a long time and the rule of law conditions, the implementation of comprehensive strictly strategic plan, implementation in accordance with the rules and discipline to manage the party, strengthen inner-party supervision of major initiatives. The two regulations supporting each other, the < code > adhere to a positive advocate, focusing on morality is of Party members and Party leading cadres can see, enough to get a high standard; < rule > around the party discipline, disciplinary ruler requirements, listed as "negative list, focusing on vertical gauge, draw the party organizations and Party members do not touch the" bottom line ". Here, the main from four square face two party rules of interpretation: the first part introduces two party Revised regulations the necessity and the revision process; the second part is the interpretation of the two fundamental principles of the revision of laws and regulations in the party; the third part introduces two party regulations modified the main changes and needs to grasp several key problems; the fourth part on how to grasp the implementation of the two regulations of the party. < code > and < Regulations > revised the necessity and revised history of the CPC Central Committee the amendment to the Chinese Communist Party members and leading cadres honest politics several guidelines > and < Chinese Communist Party discipline and Punishment Regulations > column 1 by 2015 to strengthen party laws and regulations focus. Two party regulations revision work lasted a Years, pooling the wisdom of the whole party, ideological consensus, draw historical experience, respect for the wisdom of our predecessors, which reflects the unity of inheritance and innovation; follow the correct direction, grasp the limited goals, adhere to the party's leadership, to solve the masses of the people reflect a focus on the problem. The new revision of the < code > and < rule >, reflects the party's 18 and the eighth session of the third, the spirit of the fourth plenary session, reflecting the experience of studying and implementing the General Secretary Xi Jinping series of important speech, reflects the party's eighteen years comprehensive strictly practice. (a) revised two regulations of the party need of < the ICAC guidelines > in < in 1997 Leaders as members of the Communist Party of China clean politics certain criteria (Trial) > based on revised, the promulgation and implementation of January 2010, to strengthen the construction of the contingent of leading cadres play an important role. But with the party to manage the party strictly administering the deepening, has not been able to fully meet the actual needs. Content is too complicated, "eight prohibition, 52 are not allowed to" hard to remember, and also difficult to put into practice; the second is concisely positive advocated by the lack of prohibited provisions excessive, no autonomy requirements; the third is banned terms and discipline law, both with the party discipline, disciplinary regulations repeat and Criminal law and other laws and regulations repeat; the fourth is to "clean" the theme is not prominent, not for the existing problems, and is narrow, only needle of county-level leading cadres above. < rule > is in 1997 < Chinese Communist Party disciplinary cases (Trial) > based on revision, in December 2003 the promulgation and implementation, to strengthen the construction of the party play very important role. Along with the development of the situation, which many provisions have been unable to fully meet the comprehensive strictly administering the practice needs. One is Ji law, more than half of the provisions and criminal law and other countries laws and regulations Repetition; two is the political discipline regulations is not prominent, not specific, for violation of the party constitution, damage the authority of Party Constitution of misconduct lack necessary and serious responsibility to pursue; third is the main discipline for the leading cadres, does not cover all Party members. Based on the above situation, need to < the criterion of a clean and honest administration > and < rule > the two is likely to be more relevant regulations first amendment. By revising, really put the authority of Party discipline, the seriousness in the party tree and call up the majority of Party members and cadres of the party constitution of party compasses party consciousness. (II) two party regulations revision process the Central Committee of the Communist Party of China attaches great importance to two regulations revision . Xi Jinping, general books recorded in the Fifth Plenary Session of the eighth session of the Central Commission for Discipline Inspection, on the revised regulations < > made clear instructions. According to the central deployment, the Central Commission for Discipline Inspection from 2014 under six months begin study two regulations revision. The Standing Committee of the Central Commission for Discipline Inspection 4 review revised. Comrade Wang Qishan 14 times held a special meeting to study two regulations revision, amendment clarifies the direction, major issues of principle, path and target, respectively held a forum will listen to part of the province (area) secretary of the Party committee, Secretary of the Discipline Inspection Commission, part of the central ministries and state organs Department The first party committee is mainly responsible for people, views of experts and scholars and grassroots party organizations and Party members. Approved by the Central Committee of the Communist Party of China, on 7 September 2015, the general office of the Central Committee of the Party issued a notice to solicit the provinces (autonomous regions, municipalities) Party, the central ministries and commissions, state ministries and commissions of the Party (party), the General Political Department of the military, every 3 people organization of Party of two regulations revision opinion. Central Commission for Discipline Inspection of extensive solicitation of opinions, careful study, attracting, formed a revised sent reviewers. In October 8 and October 12, Central Committee Political Bureau Standing Committee and the Political Bureau of the Central Committee After consideration of the two regulations revised draft. On October 18, the Central Committee of the Communist Party of China formally issued two regulations. Can say, two laws amendment concentrated the wisdom of the whole party, embodies the party. Second, < code > and < Regulations > revision of the basic principles of two party regulations revision work and implement the party's eighteen, ten eight plenary, the spirit of the Fourth Plenary Session of the Eleventh Central Committee and General Secretary Xi Jinping important instructions on the revised < low political criterion > and < Regulations >, highlighting the ruling party characteristics, serious discipline, the discipline quite in front of the law, based on the current, a long-term, advance as a whole, with Bu Xiuding independent < rule > and < rule >. Main principle is: first, adhere to the party constitution to follow. The constitution about discipline and self-discipline required specific, awaken the party constitution of party compasses party consciousness, maintaining the authority of the constitution. General Secretary Xi Jinping pointed out that "no rules, no side round. Party constitution is the fundamental law, the party must follow the general rules. In early 2015 held the eighth session of the Central Commission for Discipline Inspection Fifth Plenary Session of the 16th Central Committee, Xi Jinping again pointed out that constitution is the party must follow the general rules, but also the general rules." the revision of the < code > and < rule > is Method in adhere to the regulations established for the purpose of combining rule of virtue is to adhere to the party constitution as a fundamental to follow, the constitution authority set up, wake up the party constitution and party rules the sense of discipline, the party constitution about discipline and self-discipline specific requirements. 4 second is to adhere to in accordance with the regulations governing the party and the party. The Party of rule of virtue "de", mainly refers to the party's ideals and beliefs, excellent traditional style. The revised the < code > closely linked to the "self-discipline", insisting on the positive initiative, for all members, highlight the "vital few", emphasized self-discipline, focusing on the morality, and the majority of Party members and the ideological and moral standards. The revised < > Ji method separately, Ji, Ji Yan to Method, as a "negative list", emphasizing the heteronomy, focusing on vertical gauge. Is this one high and one low, a positive reaction, the strict party discipline and practice results transformation for the integration of the whole party to observe moral and discipline requirements, for the majority of Party members and cadres provides benchmarking and ruler. Third, insist on to. In view of the problems existing in the party at the present stage, the main problems of Party members and cadres in the aspect of self-discipline and abide by the discipline to make clearly defined, especially the party's eighteen years strict political discipline and political rules, organization and discipline and to implement the central eight provisions of the spirit against the four winds and other requirements into Disciplinary provisions. Not one pace reachs the designated position, focusing on in line with reality, pragmatic and effective. After the revision of major changes, major changes in the < code > and < rule > modified and needs to grasp several key problems (a) < code > < code > adhere to according to regulations governing the party and party with morals in combination, for at the present stage, the leadership of the party members and cadres and Party members in existing main problems of self-discipline, put forward principles, requirements and specifications, showing Communists noble moral pursuit, reflected at all times and in all over the world ethics from high from low 5 common requirements. One is closely linked to the "self-discipline", removal and no direct relation to the provisions of . the second is adhere to a positive advocate, "eight prohibition" 52 are not allowed to "about the content of the" negative list moved into synchronization amendment < cases >. Three is for all the party members, will apply object from the leadership of the party members and cadres to expand to all Party members, fully embodies the comprehensive strictly required. The fourth is prominent key minority, seize the leadership of the party members and cadres is the key, and put forward higher requirements than the ordinary Party members. Five is to simplify, and strive to achieve concise, easy to understand, easy to remember. The revised < code > is the ruling Party since the first insists on a positive advocate forAll Party members and the self-discipline norms, moral declaration issued to all members of the party and the National People's solemn commitment. > < criterion of a clean and honest administration consists of 4 parts, 18, more than 3600 words. After the revision of the < code >, a total of eight, 281 words, including lead, specification and Party member cadre clean fingered self-discipline norms, etc. Part 3 members low-cost clean and self-discipline, the main contents can be summarized as "four must" "eight code". Lead part, reiterated on ideal and faith, fundamental purpose, the fine traditions and work style, noble sentiments, such as "four must" the principle of requirements, strong tone of self-discipline, The higher request for 6 and supervised tenet, the foothold in permanent Bao the party's advanced nature and purity, to reflect the revised standards requirements. Members of self-discipline norms around the party members how to correctly treat and deal with the "public and private", "cheap and rot" thrifty and extravagance "bitter music", put forward the "four norms". Party leader cadre clean fingered self-discipline norms for the leadership of the party members and cadres of the "vital few", around the "clean politics", from civil servant of the color, the exercise of power, moral integrity, a good family tradition and other aspects of the leadership of the party members and cadres of the "four norms" < > < norm norm. "The Party member's self-discipline norms" and "party members and leading cadre clean fingered self-discipline norms," a total of eight, collectively referred to as the "eight". "Four must" and "eight" of the content from the party constitution and Party's several generation of leaders, especially Xi Jinping, general secretary of the important discussion, refer to the "three discipline and eight points for attention" statements, and reference some embody the Chinese nation excellent traditional culture essence of epigrams. (2) the revised regulations, the main changes in the revised Regulations > to fully adapt to the strictly requirements, reflects the according to the regulations governing the law of recognition of deepening, the realization of the discipline construction and Jin Ju. < rule > is party a ruler, members of the basic line and follow. And the majority of Party members and cadres of Party organizations at all levels should adhere to the bottom line of thinking, fear discipline, hold the bottom line, as a preventive measure, to keep the party's advanced nature and purity. 1, respect for the constitution, refinement and discipline. Revised < rule > from comprehensive comb physical constitution began, the party constitution and other regulations of the Party of Party organizations and Party discipline requirements refinement, clearly defined in violation of the party constitution will be in accordance with regulations to give the corresponding disciplinary action. The original 10 categories of misconduct, integration specification for political discipline, discipline, honesty and discipline masses Ji Law and discipline and discipline and other six categories, the content of < rule > real return to Party discipline, for the majority of Party members and listed a "negative list. 7 2, highlighting the political discipline and political rules. > < Regulations according to the stage of the discipline of outstanding performance, emphasizing political discipline and political rules, organization and discipline, in opposition to the party's leadership and the party's basic theory, basic line, basic program and basic experience, the basic requirement of behavior made prescribed punishment, increase the cliques, against the organization such as violation of the provisions, to ensure that the central government decrees and the Party of centralized and unified. 3, adhere to strict discipline in the law and discipline In front, Ji separated. Revised < Regulations > adhere to the problem oriented, do Ji separated. Any national law existing content, will not repeat the provisions, the total removal of 79 and criminal law, repeat the content of the public security management punishment law, and other laws and regulations. In the general reiterated that party organizations and Party members must conscientiously accept the party's discipline, die van comply with national laws and r。
