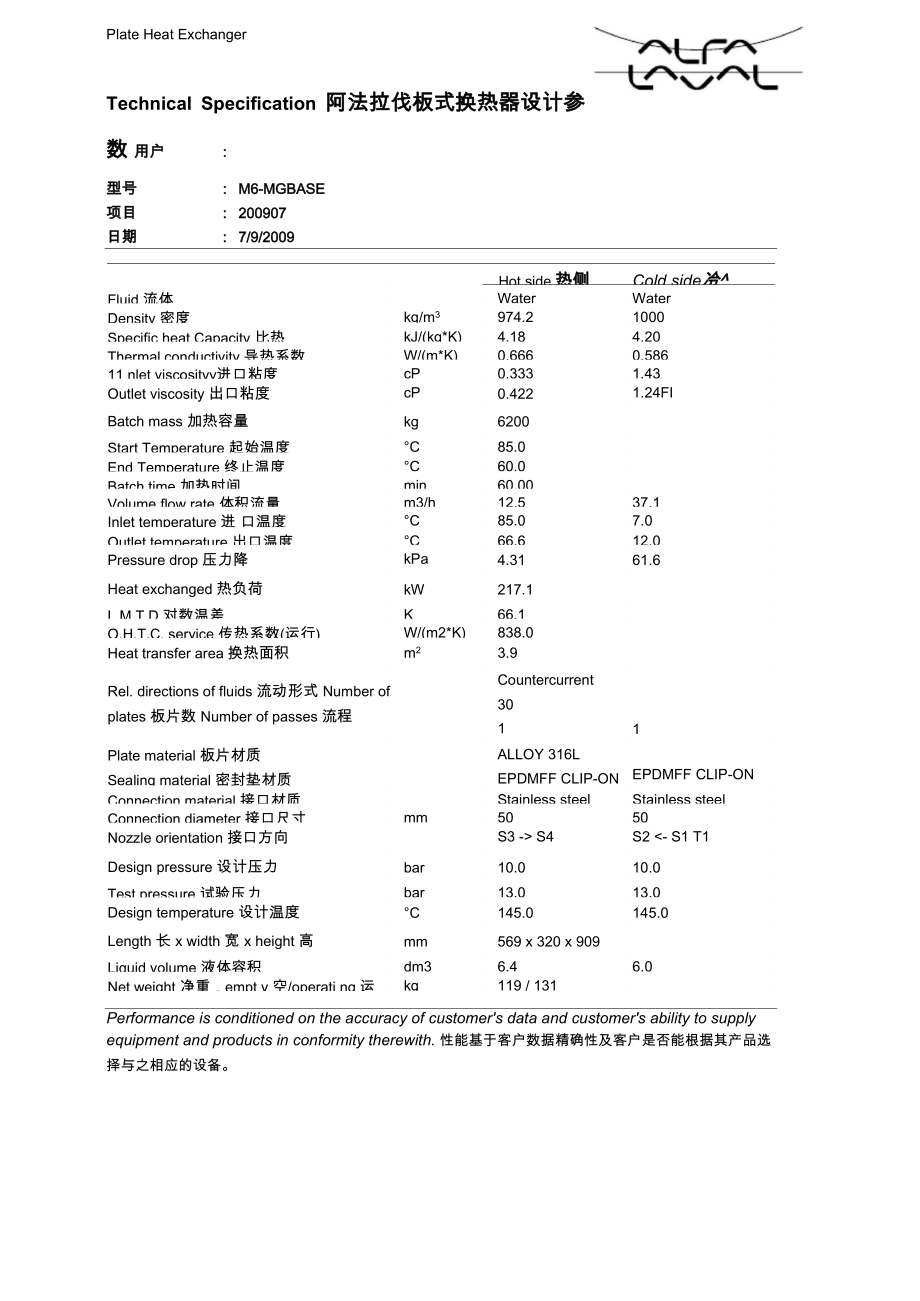

Plate Heat ExchangerTechnical Specification 阿法拉伐板式换热器设计参数 用户 :型号 : M6-MGBASE项目 : 200907日期 : 7/9/2009Hot side 热侧Cold side冷^Fluid 流体WaterWaterDensity 密度kg/m3974.21000Specific heat Capacity 比热kJ/(kg*K)4.184.20Thermal conductivity 导热系数W/(m*K)0.6660.58611 nlet viscosityy进口粘度cP0.3331.43Outlet viscosity 出口粘度cP0.4221.24FIBatch mass 加热容量kg6200Start Temperature 起始温度°C85.0End Temperature 终止温度°C60.0Batch time 加热时间min60.00Volume flow rate 体积流量m3/h12.537.1Inlet temperature 进 口温度°C85.07.0Outlet temperature 出口温度°C66.612.0Pressure drop 压力降kPa4.3161.6Heat exchanged 热负荷kW217.1L.M.T.D.对数温差K66.1O.H.T.C. service 传热系数(运行)W/(m2*K)838.0Heat transfer area 换热面积m23.9Rel. directions of fluids 流动形式 Number of plates 板片数 Number of passes 流程Countercurrent3011Plate material 板片材质Sealing material 密封垫材质ALLOY 316LEPDMFF CLIP-ONEPDMFF CLIP-ONConnection material 接口材质Stainless steelStainless steelConnection diameter 接口尺寸mm5050Nozzle orientation 接口方向S3 -> S4S2 <- S1 T1Design pressure 设计压力bar10.010.0Test pressure 试验压力bar13.013.0Design temperature 设计温度°C145.0145.0Length 长 x width 宽 x height 高mm569 x 320 x 909Liquid volume 液体容积dm36.46.0Net weight 净重，empt y 空/operati ng 运行kg119 / 131Performance is conditioned on the accuracy of customer's data and customer's ability to supply equipment and products in conformity therewith. 性能基于客户数据精确性及客户是否能根据其产品选择与之相应的设备。
